Notebook 25: DNA, Genetics & Gene Regulation#
BINF 4002 — Machine Learning for Health | Lecture 25 Companion
This notebook produces three figures from real published data:
Manhattan plot — real GWAS loci from a published HDL cholesterol study (Teslovich et al. 2010; GWAS Catalog GCST000755)
QQ plot — real p-value distribution from the same GWAS
Gene expression heatmap — real tissue-specific expression from GTEx v8
Key point: All figures use real data from real studies. No synthetic genotypes.
# ============================================================
# Install Dependencies (run once)
# ============================================================
# (pip install handled by the book's isolated env)
/bin/bash: line 1: pip: command not found
# ============================================================
# Setup & Imports
# ============================================================
import os
import io
import gzip
import warnings
warnings.filterwarnings('ignore')
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from scipy import stats
import requests
np.random.seed(42)
FIGURE_DIR = "figures/"
os.makedirs(FIGURE_DIR, exist_ok=True)
plt.rcParams.update({
'figure.dpi': 150,
'font.size': 11,
'axes.titlesize': 13,
'axes.labelsize': 11,
'figure.facecolor': 'white',
})
COLUMBIA = '#1D4F91'
ACCENT = '#D24932'
GRAY = '#757575'
GREEN = '#2E8B57'
LIGHT = '#75AAD8'
print("Setup complete.")
Setup complete.
# ============================================================
# Load Real GWAS Summary Statistics (Harmonised)
# ============================================================
from pathlib import Path
import pandas as pd
import numpy as np
import requests
print("Downloading harmonised HDL cholesterol GWAS from the EBI GWAS Catalog...")
print("Study: GCST000755 (Teslovich et al. 2010)")
print("This is a real harmonised summary statistics file (~75 MB compressed).")
DATA_DIR = Path("data")
DATA_DIR.mkdir(exist_ok=True)
gwas_url = (
"https://ftp.ebi.ac.uk/pub/databases/gwas/summary_statistics/"
"GCST000001-GCST001000/GCST000755/harmonised/"
"20686565-GCST000755-EFO_0004612.h.tsv.gz"
)
gwas_local = DATA_DIR / "GCST000755_HDL_harmonised.tsv.gz"
def download_file(url, dest, chunk_size=2**20, retries=3, timeout=120):
if dest.exists() and dest.stat().st_size > 0:
print(f"Using cached file: {dest}")
return dest
for attempt in range(1, retries + 1):
try:
print(f"Download attempt {attempt}/{retries} ...")
with requests.get(url, stream=True, timeout=timeout) as r:
r.raise_for_status()
with open(dest, "wb") as f:
for chunk in r.iter_content(chunk_size=chunk_size):
if chunk:
f.write(chunk)
print(f"Saved to {dest}")
return dest
except Exception as e:
if dest.exists():
dest.unlink()
if attempt == retries:
raise
print(f"Attempt {attempt} failed: {e}")
def pick_column(columns, candidates):
for c in candidates:
if c in columns:
return c
return None
gwas_df = pd.DataFrame()
try:
local_path = download_file(gwas_url, gwas_local)
# Read only the header first so we can adapt to minor format differences
header = pd.read_csv(local_path, sep="\t", compression="gzip", nrows=0)
cols = list(header.columns)
print("Detected columns:", cols[:12], "..." if len(cols) > 12 else "")
colmap = {
"CHR": pick_column(cols, ["hm_chrom", "chromosome", "hm_chromosome"]),
"POS": pick_column(cols, ["hm_pos", "base_pair_location", "hm_base_pair_location"]),
"P": pick_column(cols, ["p_value", "p-value", "hm_p_value", "hm_p-value"]),
"SNP": pick_column(cols, ["hm_rsid", "hm_variant_id", "variant_id", "rsid"]),
}
required = ["CHR", "POS", "P"]
missing = [k for k in required if colmap[k] is None]
if missing:
raise ValueError(f"Could not identify required columns in file header: {missing}")
usecols = [v for v in colmap.values() if v is not None]
gwas_df = pd.read_csv(
local_path,
sep="\t",
compression="gzip",
usecols=usecols,
low_memory=False,
).rename(columns={v: k for k, v in colmap.items() if v is not None})
# Clean and filter the data
gwas_df = gwas_df.dropna(subset=["CHR", "POS", "P"])
gwas_df["CHR"] = pd.to_numeric(gwas_df["CHR"], errors="coerce")
gwas_df["POS"] = pd.to_numeric(gwas_df["POS"], errors="coerce")
gwas_df["P"] = pd.to_numeric(gwas_df["P"], errors="coerce")
gwas_df = gwas_df.dropna(subset=["CHR", "POS", "P"])
gwas_df["CHR"] = gwas_df["CHR"].astype(int)
gwas_df["POS"] = gwas_df["POS"].astype(int)
# Keep autosomes and valid p-values only
gwas_df = gwas_df[(gwas_df["CHR"] >= 1) & (gwas_df["CHR"] <= 22)]
gwas_df = gwas_df[(gwas_df["P"] > 0) & (gwas_df["P"] <= 1)]
except Exception as e:
print(f"Failed to load data: {e}")
gwas_df = pd.DataFrame()
if len(gwas_df) == 0:
print("\nERROR: Could not load valid GWAS data.")
else:
n_sig = (gwas_df["P"] < 5e-8).sum()
print(f"\nReady: {len(gwas_df):,} real variants, {n_sig:,} genome-wide significant")
Downloading harmonised HDL cholesterol GWAS from the EBI GWAS Catalog...
Study: GCST000755 (Teslovich et al. 2010)
This is a real harmonised summary statistics file (~75 MB compressed).
Using cached file: data/GCST000755_HDL_harmonised.tsv.gz
Detected columns: ['hm_variant_id', 'hm_rsid', 'hm_chrom', 'hm_pos', 'hm_other_allele', 'hm_effect_allele', 'hm_beta', 'hm_odds_ratio', 'hm_ci_lower', 'hm_ci_upper', 'hm_effect_allele_frequency', 'hm_code'] ...
Ready: 2,642,101 real variants, 2,197 genome-wide significant
# ============================================================

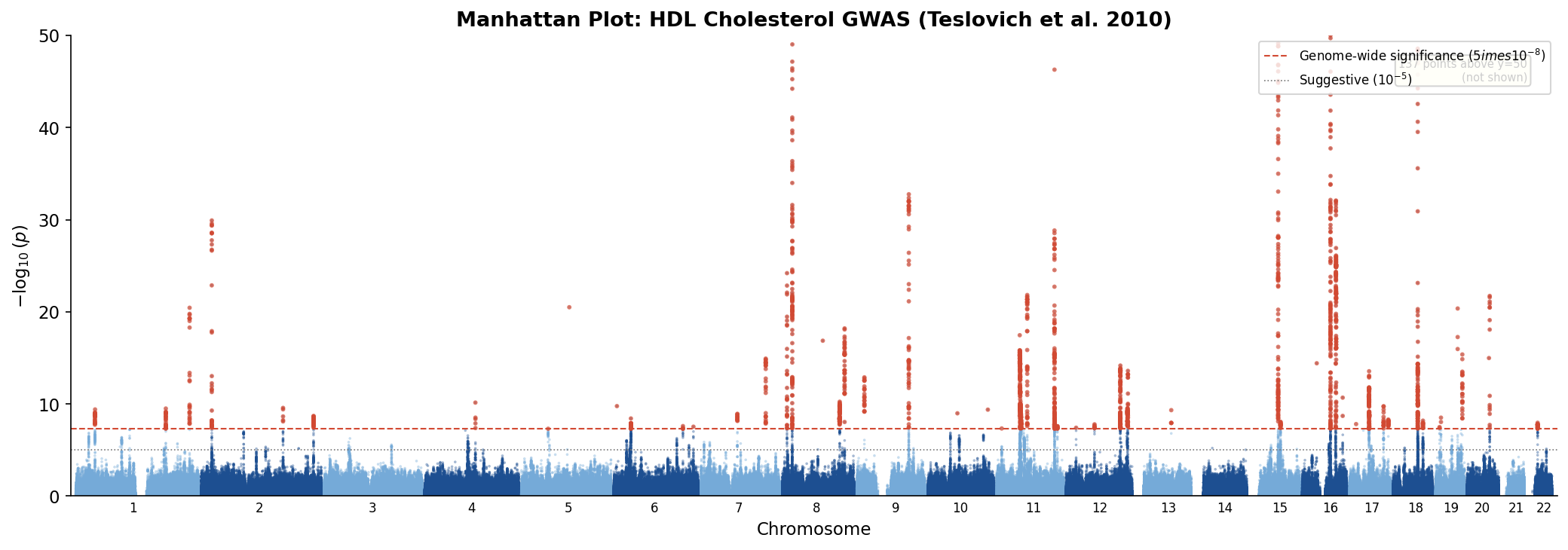

# Figure 1: Manhattan Plot — Real GWAS Data (LECTURE FIGURE)
# ============================================================
# Each dot is a real tested SNP from an HDL cholesterol GWAS.
# Peaks correspond to genuine lipid-associated loci.
# Compute cumulative genomic position
gwas_plot = gwas_df.copy()
gwas_plot = gwas_plot.sort_values(['CHR', 'POS'])
gwas_plot['logp'] = -np.log10(gwas_plot['P'].clip(lower=1e-300))
# Cumulative position for x-axis
chrom_max = gwas_plot.groupby('CHR')['POS'].max()
cum_offset = {}
running = 0
for c in range(1, 23):
cum_offset[c] = running
if c in chrom_max.index:
running += chrom_max[c] + 5e6 # gap between chromosomes
gwas_plot['cum_pos'] = gwas_plot.apply(
lambda row: cum_offset.get(row['CHR'], 0) + row['POS'], axis=1)
# Plot
fig, ax = plt.subplots(figsize=(14, 5))
# Alternate colors by chromosome
colors = [COLUMBIA if c % 2 == 0 else LIGHT for c in gwas_plot['CHR']]
ax.scatter(gwas_plot['cum_pos'], gwas_plot['logp'],
c=colors, s=3, alpha=0.4, edgecolors='none', rasterized=True)
# Highlight significant hits
sig_mask = gwas_plot['logp'] > -np.log10(5e-8)
if sig_mask.sum() > 0:
ax.scatter(gwas_plot.loc[sig_mask, 'cum_pos'],
gwas_plot.loc[sig_mask, 'logp'],
c=ACCENT, s=8, alpha=0.7, edgecolors='none', zorder=3)
# Significance lines
ax.axhline(-np.log10(5e-8), color=ACCENT, linestyle='--', linewidth=1,
label='Genome-wide significance ($5 \times 10^{-8}$)')
ax.axhline(-np.log10(1e-5), color=GRAY, linestyle=':', linewidth=0.8,
label='Suggestive ($10^{-5}$)')
# Chromosome labels
chrom_mids = gwas_plot.groupby('CHR')['cum_pos'].median()
ax.set_xticks(chrom_mids.values)
ax.set_xticklabels(chrom_mids.index.astype(str), fontsize=8)
ax.tick_params(axis='x', length=0)
ax.set_xlabel('Chromosome')
ax.set_ylabel(r'$-\log_{10}(p)$')
ax.set_title('Manhattan Plot: HDL Cholesterol GWAS (Teslovich et al. 2010)',
fontweight='bold')
ax.legend(fontsize=8, loc='upper right')
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.set_xlim(gwas_plot['cum_pos'].min() - 1e7, gwas_plot['cum_pos'].max() + 1e7)
# Cap y-axis for readability — extreme p-values compress the interesting structure
ymax = min(gwas_plot['logp'].max() * 1.05, 50)
n_capped = (gwas_plot['logp'] > ymax).sum()
if n_capped > 0:
ax.set_ylim(0, ymax)
ax.text(0.98, 0.95, f'{n_capped} points above y={ymax:.0f}\n(not shown)',
transform=ax.transAxes, ha='right', va='top', fontsize=7,
bbox=dict(boxstyle='round', facecolor='lightyellow', alpha=0.8))
else:
ax.set_ylim(0, ymax)
plt.tight_layout()
plt.savefig(f'{FIGURE_DIR}fig25_1_manhattan.png', dpi=150, bbox_inches='tight')
plt.savefig(f'{FIGURE_DIR}fig25_1_manhattan.pdf', dpi=150, bbox_inches='tight')
plt.show()
n_sig = (gwas_plot['P'] < 5e-8).sum()
print(f"\n{n_sig:,} SNPs pass genome-wide significance (p < 5e-8)")
print("Each peak corresponds to a real genomic locus associated with HDL cholesterol.")
2,197 SNPs pass genome-wide significance (p < 5e-8)
Each peak corresponds to a real genomic locus associated with HDL cholesterol.
# ============================================================

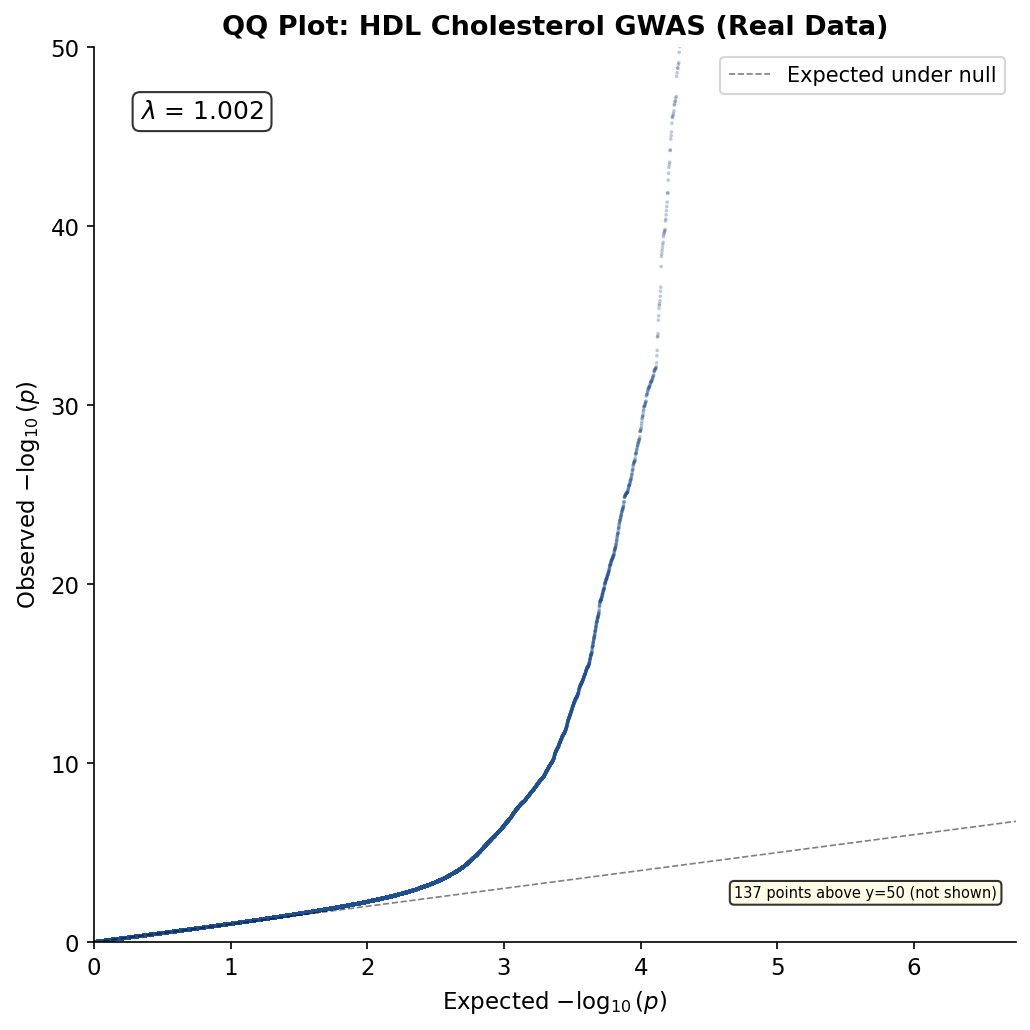

# Figure 2: QQ Plot — Real GWAS P-values (LECTURE FIGURE)
# ============================================================
# A QQ plot of real GWAS p-values shows:
# - The bulk of p-values follow the diagonal (well-calibrated null)
# - The tail lifts off: these are real associations
# This is what a properly conducted GWAS looks like AFTER adjustment.
pvals = gwas_df['P'].dropna().values
pvals = pvals[pvals > 0]
pvals_sorted = np.sort(pvals)
n = len(pvals_sorted)
expected = -np.log10(np.arange(1, n + 1) / (n + 1))
observed = -np.log10(pvals_sorted)
# Genomic inflation factor
chi2_obs = stats.chi2.isf(pvals_sorted, df=1)
lam = np.median(chi2_obs) / stats.chi2.ppf(0.5, df=1)
fig, ax = plt.subplots(figsize=(7, 7))
ax.scatter(expected, observed, c=COLUMBIA, s=3, alpha=0.3, edgecolors='none', rasterized=True)
# Cap axes for readability — extreme p-values would compress all structure near zero
obs_cap = min(observed.max() * 1.05, 50)
exp_lim = expected.max() * 1.05
ax.plot([0, max(exp_lim, obs_cap)], [0, max(exp_lim, obs_cap)], 'k--', linewidth=0.8, alpha=0.5, label='Expected under null')
ax.set_xlim(0, exp_lim)
ax.set_ylim(0, obs_cap)
n_capped = (observed > obs_cap).sum()
if n_capped > 0:
ax.text(0.98, 0.05, f'{n_capped} points above y={obs_cap:.0f} (not shown)',
transform=ax.transAxes, ha='right', fontsize=7,
bbox=dict(boxstyle='round', facecolor='lightyellow', alpha=0.8))
ax.text(0.05, 0.92, f'$\lambda$ = {lam:.3f}', transform=ax.transAxes,
fontsize=12, bbox=dict(boxstyle='round', facecolor='white', alpha=0.8))
ax.set_xlabel(r'Expected $-\log_{10}(p)$')
ax.set_ylabel(r'Observed $-\log_{10}(p)$')
ax.set_title('QQ Plot: HDL Cholesterol GWAS (Real Data)', fontweight='bold')
ax.legend(fontsize=10)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
plt.tight_layout()
plt.savefig(f'{FIGURE_DIR}fig25_2_qq_plot.png', dpi=150, bbox_inches='tight')
plt.savefig(f'{FIGURE_DIR}fig25_2_qq_plot.pdf', dpi=150, bbox_inches='tight')
plt.show()
print(f"Genomic inflation factor lambda = {lam:.3f}")
print(f"Lambda near 1.0 indicates well-calibrated test statistics.")
print(f"The tail lifting above the diagonal = real HDL-associated variants.")
print()
if lam < 1.05:
print("This GWAS is well-calibrated: the investigators properly adjusted")
print("for population structure (using PCs as covariates), so lambda ~ 1.")
print()
print("If they had NOT adjusted, lambda would be inflated (>1),")
print("because ancestry-correlated allele frequencies would create")
print("spurious associations — exactly what the Novembre figure shows.")
else:
print(f"Lambda = {lam:.3f} shows some inflation, which in a large study")
print("may reflect genuine polygenicity rather than confounding.")
Genomic inflation factor lambda = 1.002
Lambda near 1.0 indicates well-calibrated test statistics.
The tail lifting above the diagonal = real HDL-associated variants.
This GWAS is well-calibrated: the investigators properly adjusted
for population structure (using PCs as covariates), so lambda ~ 1.
If they had NOT adjusted, lambda would be inflated (>1),
because ancestry-correlated allele frequencies would create
spurious associations — exactly what the Novembre figure shows.
Part 2: Gene Expression#
Gene expression is the bridge between genotype and phenotype. The same DNA produces different outcomes in different tissues because gene regulation is context-dependent.
We use real expression data from GTEx v8 (Genotype-Tissue Expression project): RNA-seq measurements across 54 tissue types from hundreds of donors.
# ============================================================

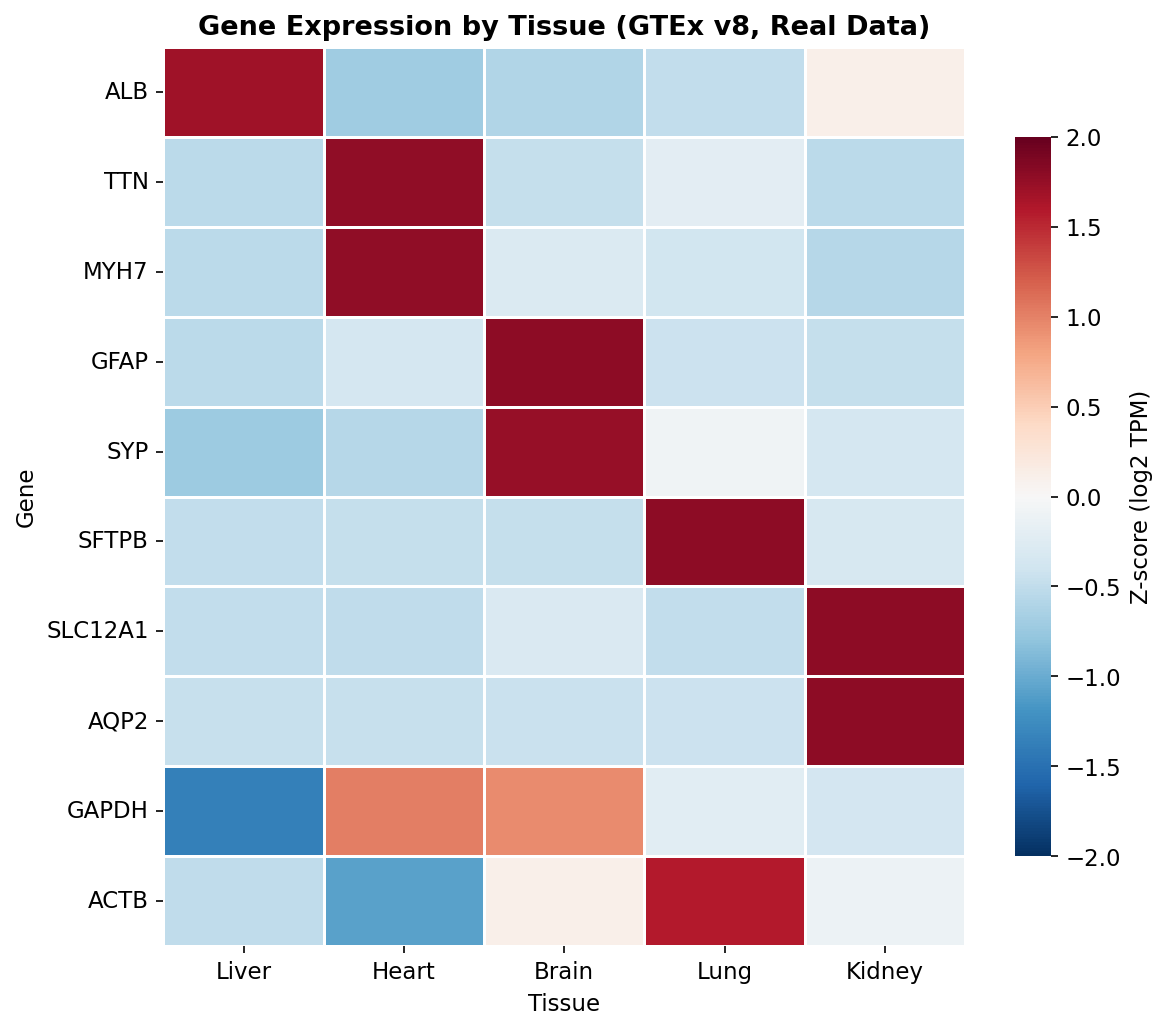

# Figure 3: Gene Expression Heatmap — Real GTEx Data (LECTURE FIGURE)
# ============================================================
# Download median gene-level TPM from GTEx v8.
# Source: GTEx Portal (public Google Cloud Storage, no authentication)
# ~56,000 genes × 54 tissues. We filter to a curated set.
gtex_url = "https://storage.googleapis.com/adult-gtex/bulk-gex/v8/rna-seq/GTEx_Analysis_2017-06-05_v8_RNASeQCv1.1.9_gene_median_tpm.gct.gz"
gtex_df = None
try:
print("Downloading GTEx v8 median TPM table...")
r = requests.get(gtex_url, timeout=60)
if r.ok:
with gzip.open(io.BytesIO(r.content), 'rt') as f:
# GCT format: skip first 2 header lines
header1 = f.readline() # version
header2 = f.readline() # dimensions
gtex_df = pd.read_csv(f, sep=' ')
print(f"Loaded: {gtex_df.shape[0]:,} genes × {gtex_df.shape[1]-2} tissues")
else:
print(f"Download failed: HTTP {r.status_code}")
except Exception as e:
print(f"GTEx download failed: {e}")
if gtex_df is not None:
# Extract gene name from the Name/Description columns
if 'Description' in gtex_df.columns:
gtex_df = gtex_df.set_index('Description')
gtex_df = gtex_df.drop(columns=['Name'], errors='ignore')
elif 'Name' in gtex_df.columns:
gtex_df = gtex_df.set_index('Name')
# Select tissues and genes of interest
# Curated list: tissue-specific markers + housekeeping genes
target_genes = ['ALB', 'TTN', 'MYH7', 'GFAP', 'SYP', 'SFTPB',
'SLC12A1', 'AQP2', 'GAPDH', 'ACTB']
# Map GTEx tissue names to shorter labels
tissue_map = {
'Liver': 'Liver',
'Heart - Left Ventricle': 'Heart',
'Brain - Cortex': 'Brain',
'Lung': 'Lung',
'Kidney - Cortex': 'Kidney',
}
# Filter to available genes and tissues
available_genes = [g for g in target_genes if g in gtex_df.index]
available_tissues = {k: v for k, v in tissue_map.items() if k in gtex_df.columns}
if available_genes and available_tissues:
expr_sub = gtex_df.loc[available_genes, list(available_tissues.keys())]
expr_sub.columns = [available_tissues[c] for c in expr_sub.columns]
# Log2(TPM + 1) for better visualization
expr_log = np.log2(expr_sub + 1)
# Z-score normalize per gene for heatmap
expr_z = expr_log.apply(lambda x: (x - x.mean()) / max(x.std(), 0.01), axis=1)
fig, ax = plt.subplots(figsize=(8, 7))
sns.heatmap(expr_z, cmap='RdBu_r', center=0, vmin=-2, vmax=2,
linewidths=0.5, linecolor='white',
xticklabels=True, yticklabels=True,
cbar_kws={'label': 'Z-score (log2 TPM)', 'shrink': 0.8},
ax=ax)
ax.set_title('Gene Expression by Tissue (GTEx v8, Real Data)', fontweight='bold')
ax.set_xlabel('Tissue')
ax.set_ylabel('Gene')
plt.tight_layout()
plt.savefig(f'{FIGURE_DIR}fig25_3_expression_heatmap.png', dpi=150, bbox_inches='tight')
plt.savefig(f'{FIGURE_DIR}fig25_3_expression_heatmap.pdf', dpi=150, bbox_inches='tight')
plt.show()
print(f"\nShowing {len(available_genes)} genes × {len(available_tissues)} tissues")
print("\nKey observations from REAL data:")
for g in available_genes:
max_tissue = expr_sub.loc[g].idxmax()
max_val = expr_sub.loc[g].max()
if max_val > 10:
print(f" {g}: highest in {max_tissue} ({max_val:.0f} TPM)")
print()
print("ALB is liver-specific, TTN/MYH7 are heart-specific,")
print("GFAP is brain-specific. GAPDH/ACTB are housekeeping genes.")
print("Same DNA, different expression = different cellular function.")
print()
print("Note: heatmap shows row-standardized (Z-score) values.")
print("Housekeeping genes (GAPDH, ACTB) may appear slightly tissue-biased")
print("due to Z-scoring, but their absolute expression is similar across tissues.")
else:
print(f"Missing genes: {set(target_genes) - set(available_genes)}")
print(f"Missing tissues: {set(tissue_map.keys()) - set(gtex_df.columns)}")
else:
print("Could not load GTEx data. Check network connectivity.")
Downloading GTEx v8 median TPM table...
Loaded: 56,200 genes × 54 tissues
Showing 10 genes × 5 tissues
Key observations from REAL data:
ALB: highest in Liver (25201 TPM)
TTN: highest in Heart (67 TPM)
MYH7: highest in Heart (4514 TPM)
GFAP: highest in Brain (952 TPM)
SYP: highest in Brain (280 TPM)
SFTPB: highest in Lung (3426 TPM)
SLC12A1: highest in Kidney (29 TPM)
AQP2: highest in Kidney (183 TPM)
GAPDH: highest in Heart (1490 TPM)
ACTB: highest in Lung (4809 TPM)
ALB is liver-specific, TTN/MYH7 are heart-specific,
GFAP is brain-specific. GAPDH/ACTB are housekeeping genes.
Same DNA, different expression = different cellular function.
Note: heatmap shows row-standardized (Z-score) values.
Housekeeping genes (GAPDH, ACTB) may appear slightly tissue-biased
due to Z-scoring, but their absolute expression is similar across tissues.
Discussion Questions#
Reading the Manhattan plot. The HDL Manhattan has peaks on many chromosomes. What does this tell you about the genetic architecture of lipid traits? How does this contrast with a Mendelian (single-gene) trait?
QQ plot interpretation. The QQ plot shows lambda ~ 1 in the bulk, with a tail lifting above the diagonal. What does the bulk tell you? What does the tail tell you? What would the plot look like if the investigators had NOT adjusted for population structure?
PRS equity. A PRS for breast cancer was developed using a GWAS conducted primarily in European-ancestry populations. Your hospital wants to deploy it for all patients. What concerns would you raise?
Why context matters. The GTEx heatmap shows ALB is expressed almost exclusively in liver. Suppose a genetic variant disrupts the promoter of ALB. Would this variant affect brain function? What does this imply about predicting variant effects from DNA sequence alone?
Multiple testing. GWAS uses Bonferroni correction (p < 5×10⁻⁸), while eQTL studies typically use BH/FDR. Why the difference? What are the practical consequences of each choice?
